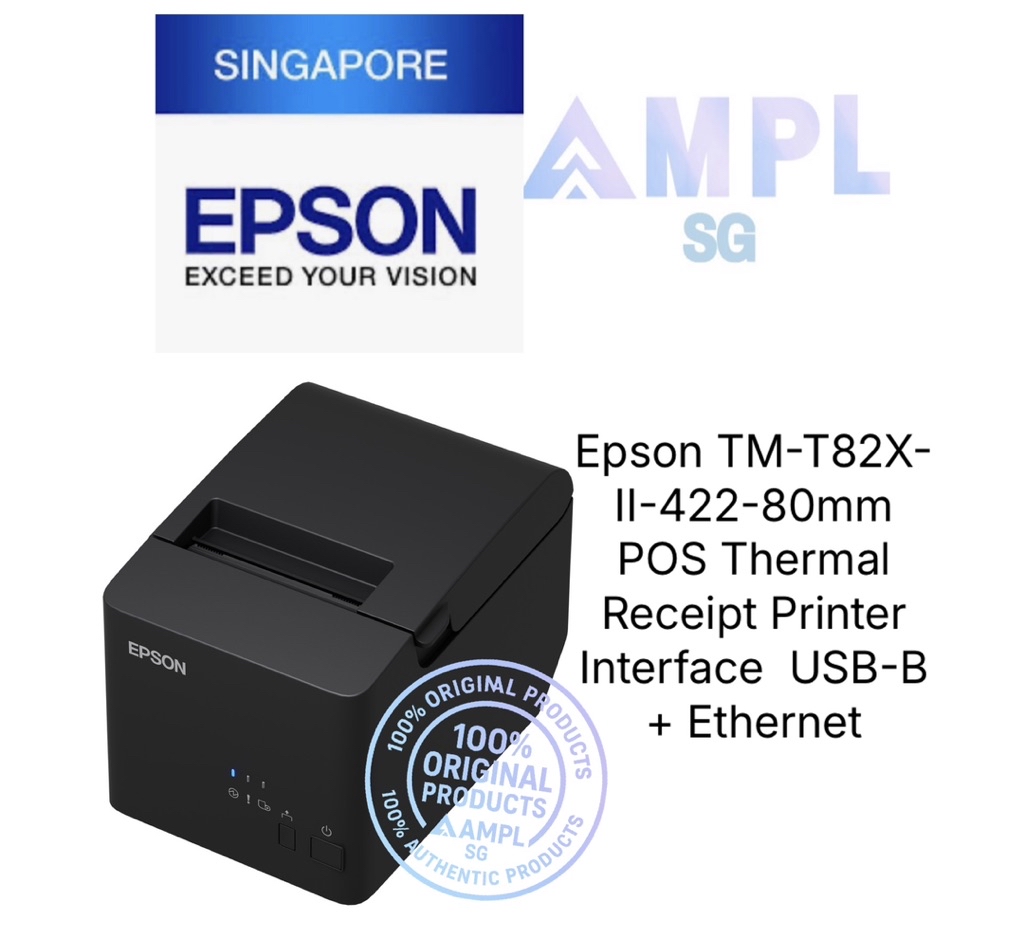

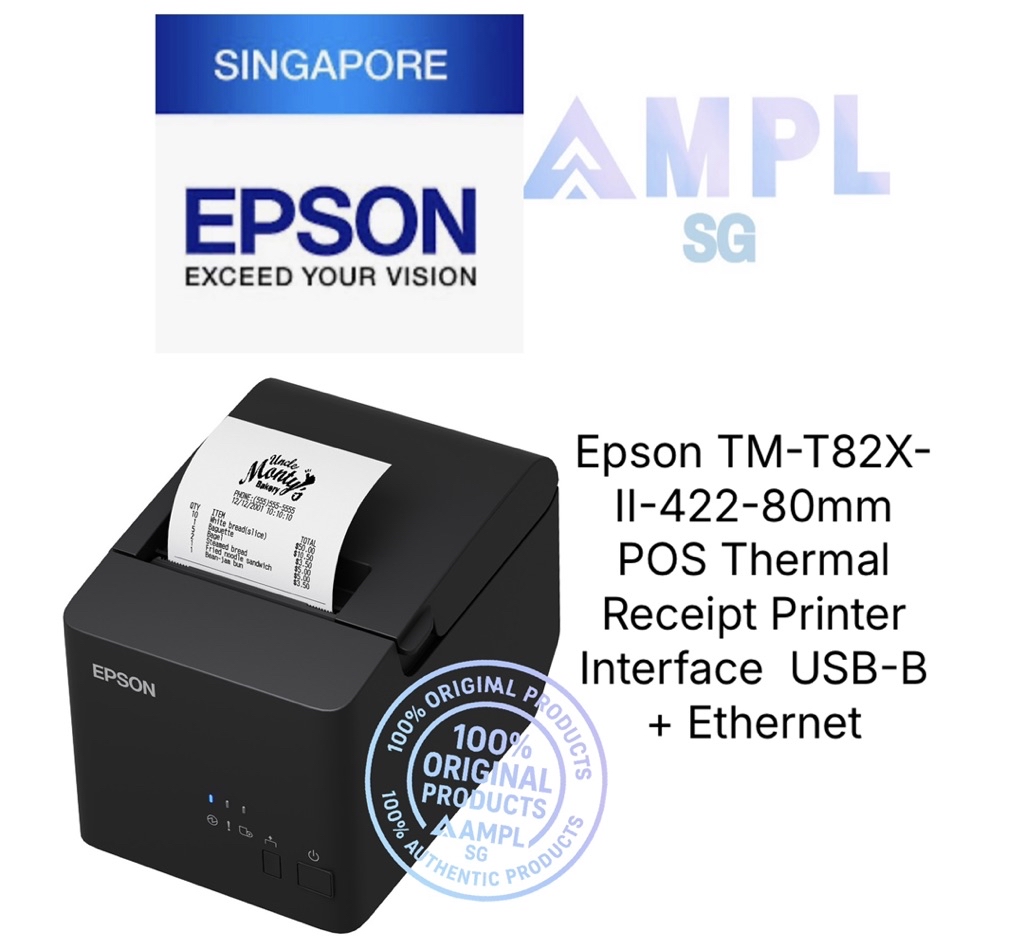

NEW MODEL NUMBER : TM-T82X-II-80mm C31CL45422

Printing Method : Thermal Line Printing

Print Font

Font ANK: 9 x 17 / 12 x 24,

Kanji Font: 24 x 24,

Thai Font: 9 x 24 / 12 x 24

Character Set : 95 Alphanumeric, 18 set International, 28 x 43 pages (Including Thai / Viet and user-defined page)

Simplified Chinese GB18030-2022 (Lv.2): 28,806

Barcode : UPC-A, UPC-E, JAN8 / EAN 8, JAN13 / EAN13, Code39, Code93, Code 128, Code128 auto, ITF, Codabar (NW-7), GS1-128, GS1 DataBar

Supported Language ANK + Thai / Viet + Simplified Chinese

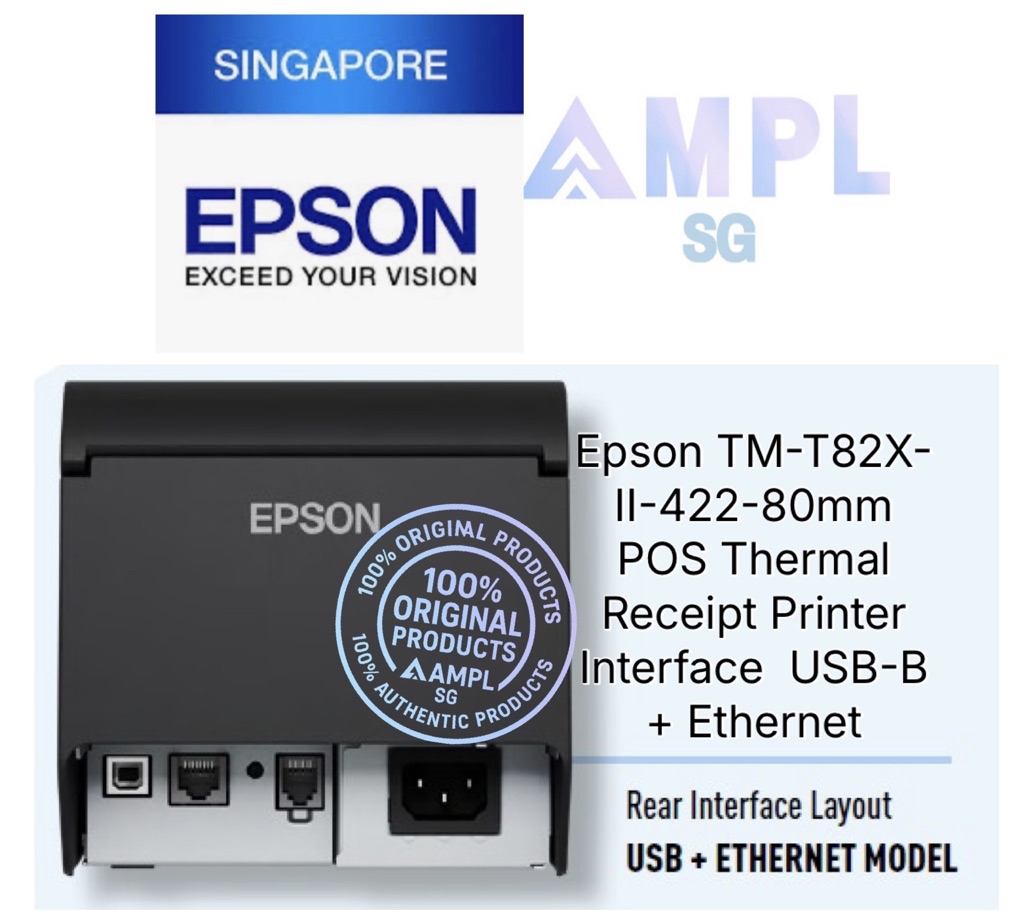

Fixed Interface Model USB-B + Ethernet

Receive Data Buffer : 4 KB or 128 KB

Print Speed : 250 mm/s

Dot / Line : 576 dots (80mm), 420 dots (58mm)

Resolution : 203 x 203 dpi

Roll Paper : 79.5 ± 0.5 mm (W) x Dia. 83 mm

Cutting : Auto Cutter. Partially cuts the paper (one point left uncut in center)

Operating Voltage : AC100 to 240V

Power Consumption:

Operating: Approx. 31.3W

Power: Supply Voltage: AC 100 to 230V / 50 to 60 Hz

Standby Mode : Approx. 0.96 W

Operating Temperature : 5 – 45° C (41 – 113° F)

Humidity : 10 – 90% RH

Power Supply : AC Adapter C1 (Built-in)

Noise Level : Operating: 55 dB

Reliability

Printer Mechanism Life : 15 million lines

Auto Cutter Life : 1.5 million cuts

Thermal Printhead Life : 100 km

MTBF : 360,000 hours

MCBF : 60 million lines

General Information

LED Indicators : Blue LED – Power

Orange LED – Error, Paper Out

Sensor : Paper End, Cover Open

Built-in Features : Paper Saving Function, Automatic Paper Cut with logo printing

Printer Driver : Windows Driver (APD), OPOS, OPOS.NET, JavaPOS (Windows, Linux),

CUPS Driver (Linux), Mac Driver, TM Virtual Port Driver,

ePOS SDK (iOS, Android)

Utility Tools : Deployment Tool, Monitoring Tool, TM-T82X-II Utility

Colour Epson : Black (EBCK)

Overall Dimensions (W X D X H) : 149 x 192 x 140 mm

Weight Approx. : 1.5 Kg

What’s in the box :

TM-T82X-II-80mm C31CL45422 Thermal Receipt Printer (Roll Paper, USB Cable, User Guide
